تفاصيل المنتج:
|
| طلاء: | PVD | صلابة: | HRA90 |
|---|---|---|---|
| مادة: | كربيد التنغستن | HRC: | 45HRC ، 55HRC ، 60HRC ، 65HRC |
| نموذج: | VCMT | الزاوية V: | 35 درجة |
| الزاوية ج: | 7 ° | التسامح م: | ±0.08-±0.18 |
| قاطع الرقاقة: | أخدود أحادي الجانب | القطر د: | 3.18 ملم، 4.76 ملم |
| نصف القطر ص: | 0.2 ملم، 0.4 ملم، 0.8 ملم | موك: | 10 قطع |
| نوع الطلاء: | pvd و cvd | مادة الشغل: | الفولاذ المقاوم للصدأ والفولاذ |
| الاستخدام: | أداة تحول خارجية | ||
| إبراز: | HRA90 Hardness CNC Insert,45HRC-65HRC Carbide Insert,3 Years Warranty Turning Insert,45HRC-65HRC Carbide Insert,3 Years Warranty Turning Insert |
||

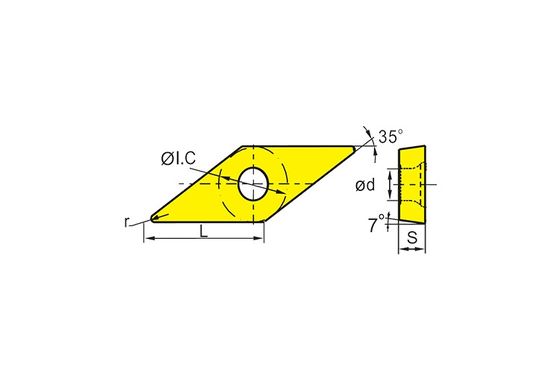

| VCMT | Value |
|---|---|
| V | 35° |
| C | 7° |
| M | ±0.08-±0.18 |
| T | Holes single-sided chip breaker groove |
| Type | Dimensions (mm) | ϕd | r |
|---|---|---|---|
| VCMT110302-OTF | 3.18 | 2.8 | 0.2 |
| VCMT110304-OTF | 3.18 | 2.8 | 0.4 |
| VCMT160404-OTF | 4.76 | 4.4 | 0.4 |
| VCMT160404-OTM | 4.76 | 4.4 | 0.4 |
| VCMT160408-OTM | 4.76 | 4.4 | 0.8 |
A Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models, This will allow us to provide you with a more accurate quote.
A We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.
A For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.
A We accept wire transfers, L/C ,ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
